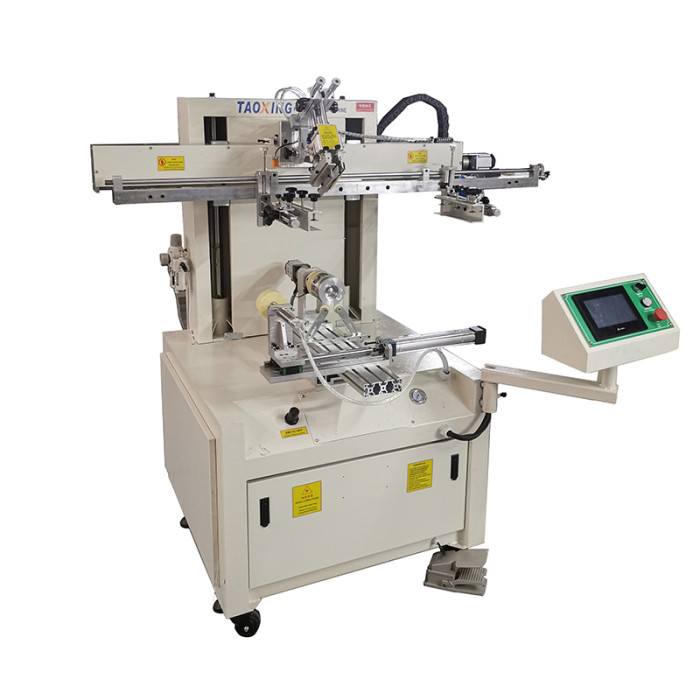

Servo Curved Screen Printing Machine TX-800SA For Truck Piston
Servo Curved Screen Printing Machine TX-800SA For Truck Piston
This servo curved screen printer is specially designed for printing wear-resistant coatings on large vehicle pistons.
Detail Information
Introduction TX-800SA Servo curved screen printing machine
This servo curved screen printer is specially designed for printing wear-resistant coatings on large vehicle pistons.
Main parameters
Model : TX-800SA
Max Printing area: 200*700mm
Air pressure: 5 bar
Rated voltage/Power: 220V/50HZ/1000W
Max printing speed: 200（pcs/h）
Max screen frame: 400*1000mm
printing size: Φ180*300mm
Printing length: ≤250mm
Dimension Size : 1450*950*1850mm
Gross weight : 332(KG)
Main performance
① PLC controls the operation of each function, with high degree of automation and simple and convenient operation.
② Built-in four-digit automatic counter.
③ Automatically scrape ink, return ink, lift and lower the printing plate, which not only simplifies the operation but also ensures the stability of printing quality. ④ The printing stroke and speed are adjustable to meet different printing requirements.
⑤ Automatically balanced scraper to ensure balanced printing pressure.
⑥ The workbench and screen frame can be fine-tuned front and back, left and right, up and down, with high printing accuracy, convenient and fast adjustment. ⑦ The scraper part can be lifted independently, and the screen frame can be replaced and cleaned easily and conveniently.
⑧ Lifting servo motor control to achieve one-button adjustment of the screen spacing.
⑨ The left and right motors and the product rotation motor are servo-driven, which is more accurate.
Application TX-800SA Servo curved screen printing machine
