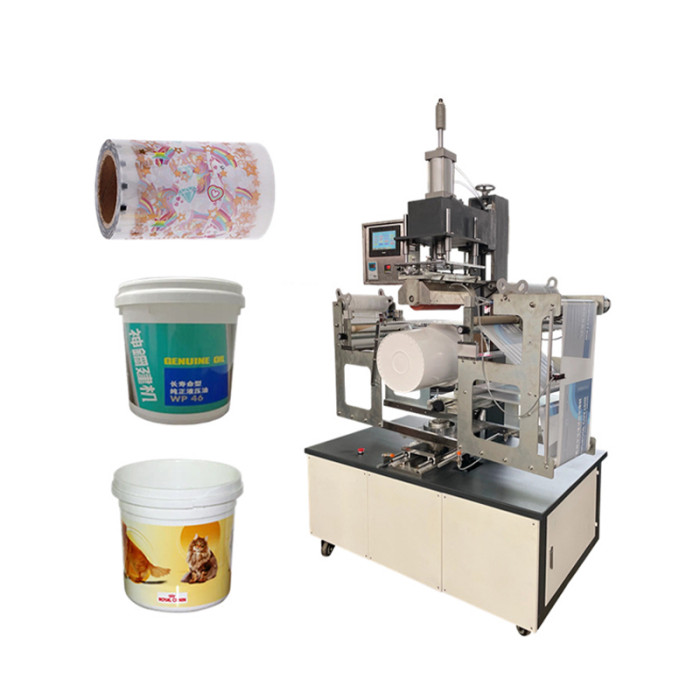

TAOXING Swinging Plastic Barrel Heat Transfer Machine TX-HT300-B

TAOXING Swinging Plastic Barrel Heat Transfer Machine TX-HT300-B

TAOXING Swinging Plastic Barrel Heat Transfer Machine TX-HT300-B
TAOXING Swinging Plastic Barrel Heat Transfer Machine TX-HT300-BTAOXING Swinging Plastic Barrel Heat Transfer Machine TX-HT300-BTAOXING Swinging Plastic Barrel Heat Transfer Machine TX-HT300-BTAOXING Swinging Plastic Barrel Heat Transfer Machine TX-HT300-BTAOXING Swinging Plastic Barrel Heat Transfer Machine TX-HT300-B
This heat transfer machine is suitable for surface pattern hot stamping of circular products such as paint buckets, plastic water buckets, garbage bins, etc
CategoriesSemi-Automatic Hot Stamping Machine
BrandTAOXING Screen Printing Machines Manufacturer
ModelTX-HT300-B
ModelTX-HT300-B
Heating transfer size100*300mm
Power1.6Kw
Printing speed5 times/min
VoltageVoltagev
Air pressure0.4~0.6mpa
Roller size100*300mm
G.W./N.W589kgv
Packaging dimension122*86*225cm
Automatic gradesemi-auto
Warranty1 Year
FOB portNingbo
Terms of PaymentWestern Union, T/T
Update TimeNov 21,2024
Detail Information
Introduction    Plastic Bucket Heat Transfer Printing Machine
Fully automatic CCD screen printing machine
This heat transfer machine is suitable for surface pattern hot stamping of circular products such as paint buckets, plastic water buckets, garbage bins, etc
1. The heat transfer machine adopts PLC control, touch screen display, and stepper motor.
2. The machine adopts pneumatic control to move the heating plate up and down, and requires an external air pump.
3. The hot stamping pressure, temperature, and speed can be adjusted
4. Automatic winding of heat transfer film, cursor alignment device for more accurate hot stamping
Features
1. Equipped with air pressure sensor, the pressure is more balanced. The hot stamping pressure, temperature, speed and time are adjustable.
2. The angle and front and back position of the clamp base can be adjusted.
3. The transfer speed can reach up to 4 seconds per circle.
4. The electronic digital display of the tension control system can be adjusted to prevent the transfer film from being uneven.
Specification
Parameter
Model: TX-HT300-B
Hot stamping width: 300mm
Temperature: 0-400'℃
Air pressure: 0.4-0.6map
Pressure: 0. 5T
Stroke: 150mm
Speed: 8 times/minute
Power supply: 220V 50-60HZ
Power: 3KW
Machine weight: 350KG
Machine size: 1100*900*1800mm

Application
Lubricating oil drum
Paint bucket
Garbage can
