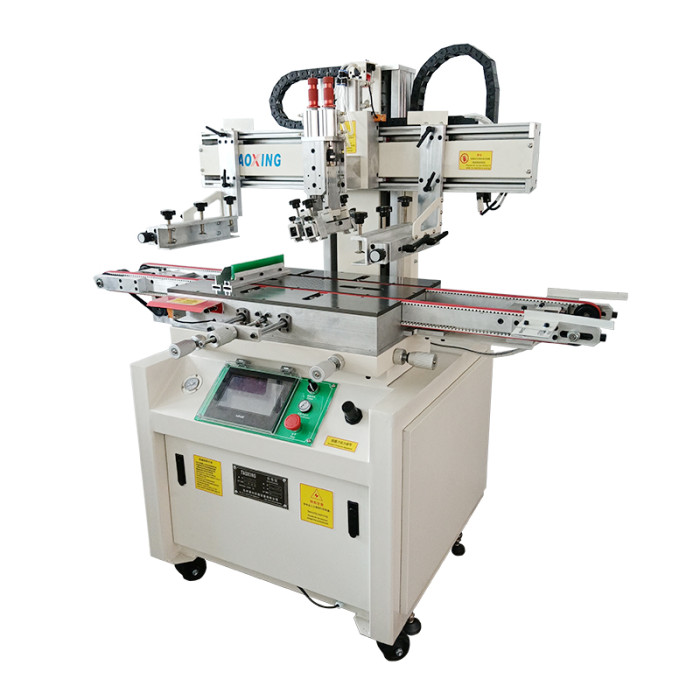

TX-3050SF-A Plate Servo Screen Printing Machine with Auto Positioning Function

This Servo Screen Printing Machine is suitable for high-precision positioning screen printing of permanent magnets, electronic panels, glass panels, ceramic substrates, metal signs, PCB boards and other products.

Categories	Automatic Flat Screen Printing Machine
Brand	TAOXING Screen Printing Machines Manufacturer
Model	TX-3050SF-A
Model	TX-3050SF-A
Max printing area	250*450mm
Table size	400*600mm
Printing Speed	500-800 pcs/h
Max screen frame	500*900mm
Work-Piece Thickness	≤20mm
Power Supply	AC220V/2.2KW
Machine Dimension	11509501570mm
Machine Weight	250KG
Printing pressure	0.5-0.7Mpa
FOB port	Ningbo
Terms of Payment	T/T
Update Time	Dec 4,2024

Contact Now

Favorites

Detail Information

Introduction Servo positioning plate flat screen printing machine

Fully automatic CCD screen printing machine

Servo positioning plate flat screen printing machine is suitable for high-precision positioning screen printing of permanent magnets, electronic panels, glass panels, ceramic substrates, metal signs, PCB boards and other products.

★Main performance

①Mitsubishi PLC program control circuit, human-machine interface control, and user-friendly operation.

② Vertical structure, the screen plate moves vertically up and down, and the printing head moves left and right.

③Printing and screen lifting adopt independent driving sources, with coordinated movements and stable and adjustable speed.

④Panasonic servo system drives the printing tool holder, and the photoelectric eye controls the stroke and adjusts independently.

⑤Printing is driven by Panasonic servo motor, with smooth movement.

⑥The printing platform is equipped with precision fine-tuning handles in the horizontal and vertical directions, allowing precise fine-tuning and easy color registration.

⑦ Equipped with three printing modes: manual/semi-automatic/fully-automatic, automatic printing indirect time digital control (1~9 seconds).

⑧Independently designed machine head lifting device, scraper/return knife, screen loading and unloading and screen cleaning are convenient.

⑨The left and right net clamp arms are equipped with plate spacing adjustment devices for easy adjustment.

⑩The angle and balance of scraping and ink return can be adjusted.

⑪The printing platen adopts a vacuum suction work surface to facilitate the fixation of printing sheets.

Specification Servo positioning plate flat screen printing machine

Model			TX-3050SF-A
Table Size			400*600mm
Substrate Thickness			≤20mm
Max Printing Area			300*500mm
Min Printing Area			100x200mm
Printing speed			500-800 pcs/h
Max frame size			500*900mm
Printing precision			±0.02mm
Power Consumption			AC220V/2.2KW
Printing pressure			0.5-0.7Mpa
Machine Dimension			11509501570mm
Machine Weight			250kg

Application Servo positioning plate flat screen printing machine

Metal nameplate

Aluminum plate

Printed circuit board
