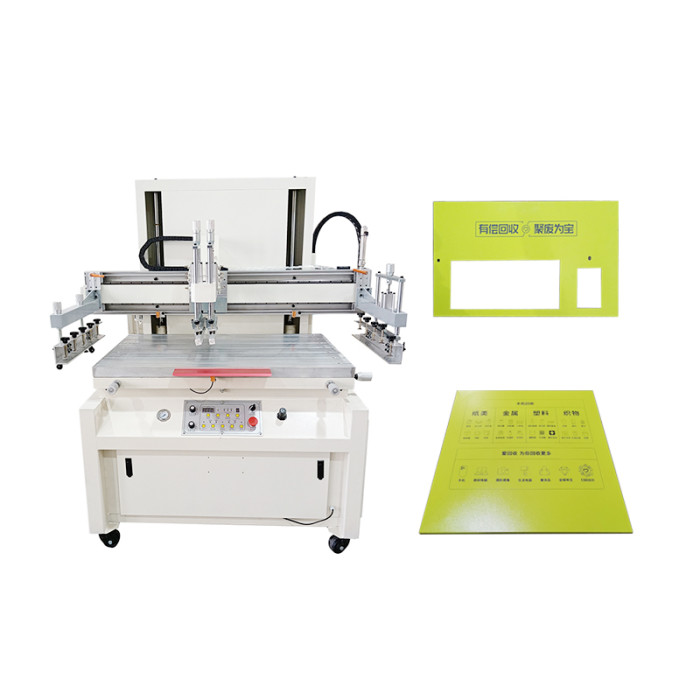

Semi-automatic Flat Screen Printing Machine TX-60100ST for Sheet Metal

Be applied to the flat printing for glass, nameplate, stickers, credit card, Ceramic colored paper, wooden toy puzzles，PCB,SMT tin ointment, and membrane switches in electronic industry .It is also applicable to the flat printing such as golden and silver cardboard ,metal sheet, and other products with the material of PVC, which have high requirement in overprinting.

Categories	Semi-Automatic Flat Screen Printing Machine
Brand	TAOXING Screen Printing Machines Manufacturer
Model	TX-60100ST
Printing color	1 color
Operating mode	semi-automatic
Printing speed	800pcs/h
Printing size	600*1000mm
Table Size	700*1100mm
Max Frame Size	1000*1400mm
Printing Thickness	≤50mm
Dimension	202012101720mm
Weight	950KG
Power	380V/50HZ /4.5KW
FOB port	Ningbo
Terms of Payment	T/T
Download
Update Time	Dec 22,2024

Contact Now

Favorites

Detail Information

Introduction Semi-automatic Flat Screen Printing Machine for metal sheet

Fully automatic CCD screen printing machine

Application:

Be applied to the flat printing for matal sheet, nameplate, stickers, Ceramic colored paper, wooden toy puzzles，PCB,SMT tin ointment, and membrane switches in electronic industry .It is also applicable to the flat printing such as golden and silver cardboard ,metal sheet, and other products with the material of PVC, which have high requirement in

overprinting.

Main performance

1.Vertical structure with the motor driven printing plate goes up and down vertically, and the motor driven print head moves left/right.

2. Single chip controlled circuit, printing and plate goes up and down using independent driving source.

3. Pneumatic controller controls the printing knife moves up and down, photocell eye controls the stroke, which is independent to tune.

4. Set manual/semi-automatic /automatic three modes , the break time of printing is digital controlled.

5. Independent designed head rising and down setting, makes it convenient to clean the scraping blade/reclaiming blade、screen plate during loading and unloading.

6. Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.

Specification

Model			TX-60100ST
Table Size			700x1100mm
Substrate Thickness			0-25 mm
Max Printing Area			600×1000mm
Printing speed			800 pcs/h
Maximum screen frame size			1000*1400mm
Stacking Height			50mm
Worktable Displacement			±5mm
Power Consumption			380V/50HZ / 4.5KW
Printing pressure			4.0~6.0 kfg/c㎡
Machine Dimension			202012101720mm
Machine Weight			950KG
