Taoxing Semi-Automatic Flat Screen Printing Machine TX-4060ST-T For Electric Meter Box
Taoxing Semi-Automatic Flat Screen Printing Machine TX-4060ST-T For Electric Meter Box
The electric T-slot flat screen printing machine specially designed for meter boxes can save you time and effort, the first choice of many meter box merchants, providing high accuracy and consistency, in this blog post, we will briefly discuss how to use Electric T-slot flat screen printing machine.
| Categories | Semi-Automatic Flat Screen Printing Machine |
|---|---|
| Brand | TAOXING Screen Printing Machines Manufacturer |
| Model | TX-4060ST-T |
| Printing color | 1 color |
| Operating mode | semi-automatic |
| Printing speed | 1000pcs/h |
| Maximum mesh frame size | 700x1050mm |
| Printing size | 400*600mm |
| Printing Thickness | ≤100mm |
| Printing pressure | 4.0~6.0 kfg/c㎡ |
| Voltage/power | 380V/50HZ /2.1KW |
| Dimension | 1230x950x1580mm |
| Printing type | Automtic Screen Printing Machine |
| Weight | 495 KG |
| FOB port | Ningbo |
| Terms of Payment | T/T |
| Update Time | Oct 16,2024 |
Detail Information
Introduction TX-4060ST Electric Meter Box Screen Printing Machine
Application:
The electric meter box flat screen printing machine specially designed for meter boxes can save you time and effort, the first choice of many meter box merchants, providing high accuracy and consistency, in this blog post, we will briefly discuss how to use Electric T-slot flat screen printing machine.
Features:
① Vertical structure, the vertical lifting and lowering of the screen is electric, and the left and right movements of the printing head are driven by variable frequency electric drives.
② SCM control circuit, independent driving source for printing and screen lift.
③ Pneumatically control the lifting and lowering of the printing knife frame, and the photoelectric eye controls the stroke, which can be adjusted independently.
④ Manual/semi-automatic/full-automatic three modes are set, and the printing indirect time is digitally controlled.
⑤ Independently designed machine head lifting device, squeegee/return knife, screen loading and unloading and screen cleaning are convenient.
⑥ Double guide column left and right mesh clamp arms, and at the same time, the plate distance adjustment device is installed, which is easy to adjust.
Specification
Model | TX-4060ST-T | |||||||
Table Size | 500*700mm | |||||||
Substrate Thickness | ≤100mm | |||||||
Max Printing Area | 400×600mm | |||||||
Printing speed | 1000 pcs/h | |||||||
Maximum screen frame size | 700*1050mm | |||||||
Stacking Height | 300mm | |||||||
Worktable Displacement | ±5mm | |||||||
Power Consumption | 380V/50HZ /2.1KW | |||||||
Printing pressure | 4.0~6.0 kfg/c㎡ | |||||||
Machine Dimension | 1260*910*1650mm | |||||||
Machine Weight | 495KG | |||||||

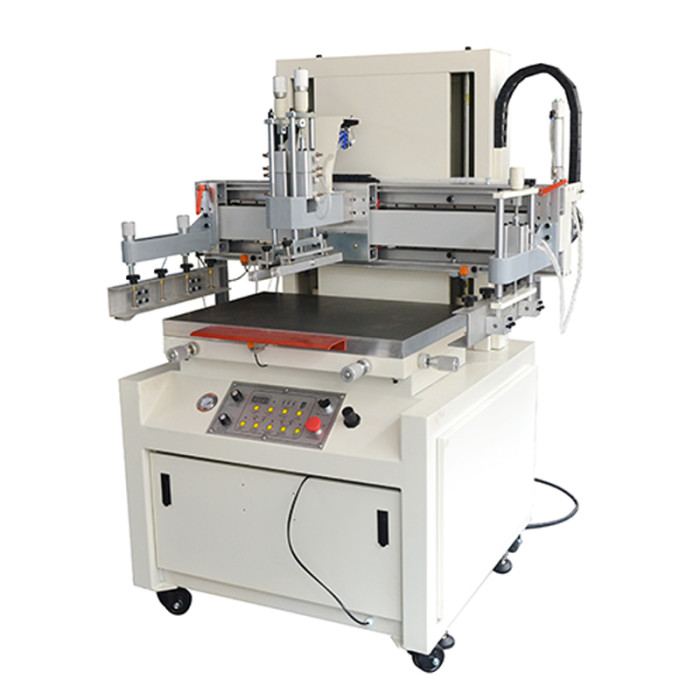

Machine image
Printing samples
