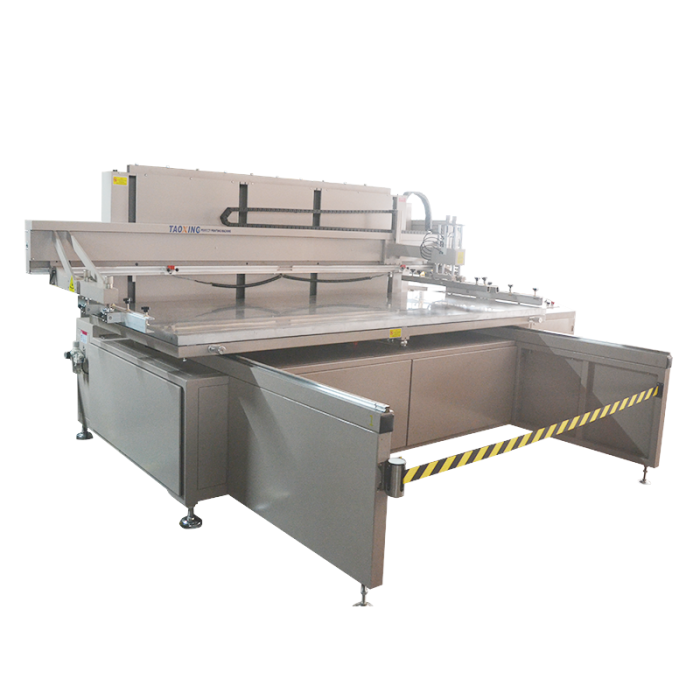

Wooden Door Flat Screen Printing Machine TX-90240ST-P with Large Printing Size

This automatic screen printing machine is applied for big size products printing, like paper, glass, PVC sheet, wooden board , and so on.Table moving function can make input &takeoff product more easy.

Categories	Semi-Automatic Flat Screen Printing Machine
Brand	TAOXING Screen Printing Machines Manufacturer
Model	TX-90240ST-P
Printing color	1 color
Operating mode	semi-automatic
Printing size	900*2400mm
Table Size	1100*2600mm
Max Frame Size	1300*2800mm
Max printing speed	300pcs/h
Printing Thickness	≤30mm
Dimension	330025001700mm
Weight	1000 KG
Power	220V/50HZ 5.6KW
Application	flat glass , door, wood , yoga mat screen printing
Precision	±0.05mm
Precision fine-tuning range	±10mm
FOB port	Ningbo
Terms of Payment	T/T
Download
Update Time	Dec 31,2024

Contact Now

Favorites

Detail Information

Introduction

Fully automatic CCD screen printing machine

Application:

This automatic screen printing machine is applied for big size products printing, like paper, glass, PVC sheet, wooden doos , and so on.Table moving function can make input &takeoff product more easy.

Features

★Main performance

1.Vertical structure with the motor driven printing plate goes up and down vertically, and the motor driven print head moves left/right.

2. Single chip controlled circuit, printing and plate goes up and down using independent driving source.

3. Pneumatic controller controls the printing knife moves up and down, photocell eye controls the stroke, which is independent to tune.

4. Set manual/semi-automatic /automatic three modes , the break time of printing is digital controlled.

5. Independent designed head rising and down setting, makes it convenient to clean the scraping blade/reclaiming blade、screen plate during loading and unloading.

6. Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.

Specification

Model			TX-90240T-P
Printing Table Size			1100*2600mm
Printing Thickness			≤30mm
Max Printing Area			900×2400mm
Printing speed			300 pcs/h
Maximum screen frame size			1300*2800mm
Stacking Height			300mm
Worktable Displacement			±10mm
Power Consumption			220V/50HZ /5.6KW
Printing pressure			6～8 kfg/c㎡
Machine Dimension			330025001700mm
Machine Weight			1000KG
