Large Size Automatic Screen Printing Machine for Yoga Mat Carpet
Large Size Automatic Screen Printing Machine for Yoga Mat Carpet
This semi-automatic flat screen printer is suitable for printing large-size products such as yoga mats and table mats.
| Categories | Semi-Automatic Flat Screen Printing Machine |
|---|---|
| Brand | TAOXING Screen Printing Machines Manufacturer |
| Model | TX-90180ST |
| Printing color | 1 color |
| Operating mode | semi-automatic |
| Printing speed | 1000pcs/h |
| Printing size | 900*1800mm |
| Table Size | 1000*2000mm |
| Max Frame Size | 1200*2400mm |
| Printing Thickness | 50mm |
| Dimension | 2650*1500*1740mm |
| Power | AC380V / 5.7KW |
| Weight | 680KG |
| FOB port | Ningbo |
| Terms of Payment | T/T |
| Update Time | Oct 16,2024 |
Detail Information
Introduction TX-90180ST Semi-automatic Flat Screen Printing Machine
Application:
This semi-automatic flat screen printer is suitable for printing large-size products such as yoga mats and table mats.
Features
★Main performance
1.Vertical structure with the motor driven printing plate goes up and down vertically, and the motor driven print head moves left/right.
2. Single chip controlled circuit, printing and plate goes up and down using independent driving source.
3. Pneumatic controller controls the printing knife moves up and down, photocell eye controls the stroke, which is independent to tune.
4. Set manual/semi-automatic /automatic three modes , the break time of printing is digital controlled.
5. Independent designed head rising and down setting, makes it convenient to clean the scraping blade/reclaiming blade、screen plate during loading and unloading.
6. Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.
Specification
Model | TX-90180ST | |||||||
Table Size | 1000*2000mm | |||||||
Substrate Thickness | 50mm | |||||||
Max Printing Area | 900*1800mm | |||||||
Printing speed | 1000 pcs/h | |||||||
Maximum screen frame size | 1200*2400mm | |||||||
Stacking Height | 300mm | |||||||
Worktable Displacement | ±5mm | |||||||
Power Consumption | 380V/ 50HZ / 5.7 KW | |||||||
Printing pressure | 4.0~6.0 kfg/c㎡ | |||||||
Machine Dimension | 2650*1500*1740mm | |||||||
Machine Weight | 680KG | |||||||

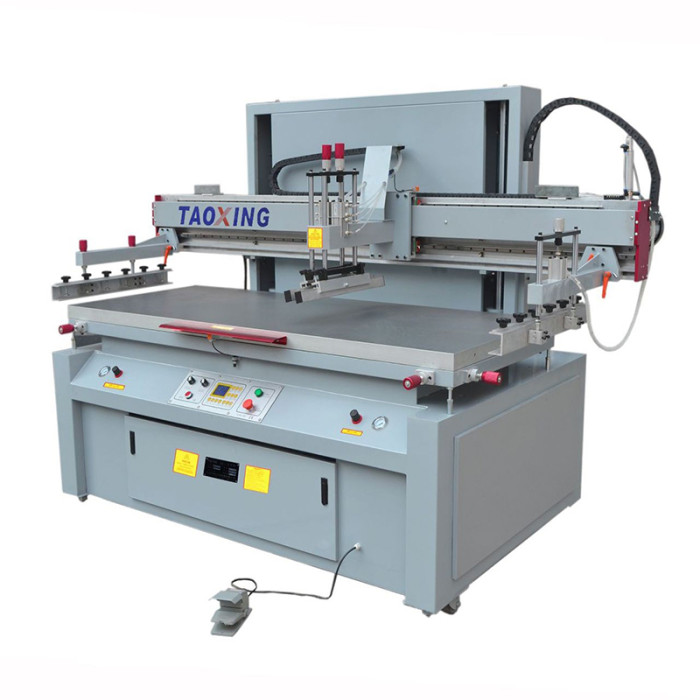

Machine image
Application
Yoga mat
Yoga mat
Sports anti-slip mat
