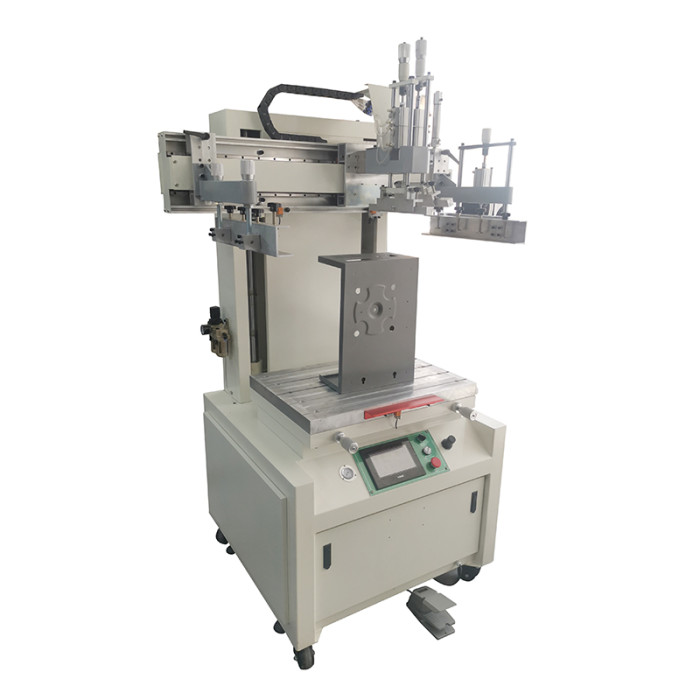

High Precision Servo Flat Screen Printing Machine TX-4060SF for Square Box

It is suitable for the plane printing of glass, optical disc, nameplate, adhesive, credit card, ceramic paper, wooden toy puzzle,PCB, SMT solder paste, film switch and other products in electronic industry, as well as for the plane printing of products with high overprinting accuracy based on gold and silver cardboard, metal sheet, PVC and so on.

Categories	Semi-Automatic Flat Screen Printing Machine
Brand	TAOXING Screen Printing Machines Manufacturer
Model	TX-4060SF
Printing color	1 color
Operating mode	semi-automatic
Printing speed	1000pcs/h
Maximum mesh frame size	700x1000mm
Max printing area	400*600mm
Printing Thickness	≤450mm
Printing pressure	4.0~6.0 kfg/c㎡
Voltage/power	220V/2KW
Dimension	12609101650mm
Drive system	Servo motor
Weight	492 KG
Size of printing table	500*700mm
FOB port	Ningbo
Terms of Payment	T/T
Download
Update Time	Dec 21,2024

Contact Now

Favorites

Detail Information

Introduction

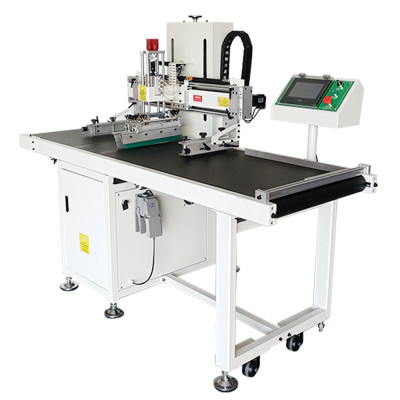

Fully automatic CCD screen printing machine

Application:

The semi-automatic flat screen printing machine is suitable for metal box，paper box，wooden box，plastic storage box，glass windows, organic glass, conductive film circuit , acrylic sheet, etc.

Features

1. Mitsubishi PLC man-machine interface controller makes the operation full of humanization.

2. Vertical structure, the screen frame lift up and down, and the head printer move left and right.

3. Printing and lift of screen frame adopt independent driver, ensure the coordinating action, the stable and adjustable speed.

4. Panasonic servo system drives printing, photocell eye control the printing travel, independent adjustment.

5. Micro registration handle in horizontal and vertical direction make more precise and convenient color registration.

6. Manual, semi auto and auto printing mode are available to choose. The digital control of interval time in auto printing mode can be set from 1 to 9 seconds.

7. Independent printing head up-and-down movementdevice makes the installation and disassembly of scraper, ink blade, and screen frame more convenient.

8. Side clamps adjusting device make the adjustment of screen frame easier.

9. Screen distance adjusting hand wheel can adjust the screen frame quickly.

10. Safety protection device is equipped to ensure the safety of operator.

Specification

Model			TX-4060SF
Table Size			400x600mm
Printing Thickness			≤450mm
Max Printing Area			400×600mm
Printing speed			1000 pcs/h
Maximum screen frame size			700x1000mm
Size of printing table			500*700mm
Worktable Displacement			±5mm
Power Consumption			280V/50HZ /2.0KW
Printing pressure			4.0~6.0 kfg/c㎡
Machine Dimension			12609101650mm
Machine Weight			492KG

Machine image

Application

Metal chassis

Glass Panel

Metal nameplate
