TAOXING Big Size UV Light Source System UV Curing Machine for Circular Plastic Bucket
TAOXING Big Size UV Light Source System UV Curing Machine for Circular Plastic Bucket
UV curing machine is mainly used for curing ink on printed products to improve the color fastness of the pattern.
| Categories | UV Curing Machine |
|---|---|
| Brand | TAOXING Screen Printing Machines Manufacturer |
| Model | TX-UV300PY |
| Type | uv curing machine |
| Maximum light fixture size | Φ300*300mm |
| Conveyor width | 300mm |
| Conveyor speed | 1-10m/min |
| Lamp power | 5KW/380V |
| Conveyor motor power | 60W /1P /220V |
| Total power | 5.4KW |
| Weight | 380 KG |
| Overall size | 2500*900*1350mm |
| FOB port | Ningbo |
| Terms of Payment | T/T |
| Update Time | Oct 16,2024 |
Detail Information
Introduction Circular plastic bucket UV curing machine
This large-sized UV curing machine is mainly used for printing and curing patterns on the surface of circular plastic buckets.
1.Low MOQ: It can meet your low qty demand very well.
2.Good Service : We treat clients business as our own business.
3.Good Quality :We have strict QC quality control system .Good reputation in the market.
4.Fast & Cheap Delivery: We have big discount from shipping forwarder (Long Contract).
Specification
Main parameters
Model: TX-UV300PY
Maximum light fixture size: Φ300*300mm
Conveyor width: 300mm
Conveyor speed: 1-10m/min
Speed adjust way： Electronic stepless speed regulation
Lamp power：5KW/380V
Conveyor motor power：60W /1P /220V
Total power：5.4KW
Overall size：2500*900*1350mm
Weight：380kg
Features and Performance
1) There are 2 sets of UV light source systems, Please utilize them according to the detailed requirement.
2) The imported mesh belt conveyor, it is enjoys precise production, smooth running , and restful.
3) The speed of conveyor is adjustable, it can be adjusted any reasonable speed you need.
4) Precise and imported photo spot, high reflective lampshade, quick drying.
5) The illuminating height of UV shade is also adjustable.
6The operating current of UV lamps is shown outside so as to control the working status.
7) There is a heat-extraction system to keep a high-efficiency working environment .

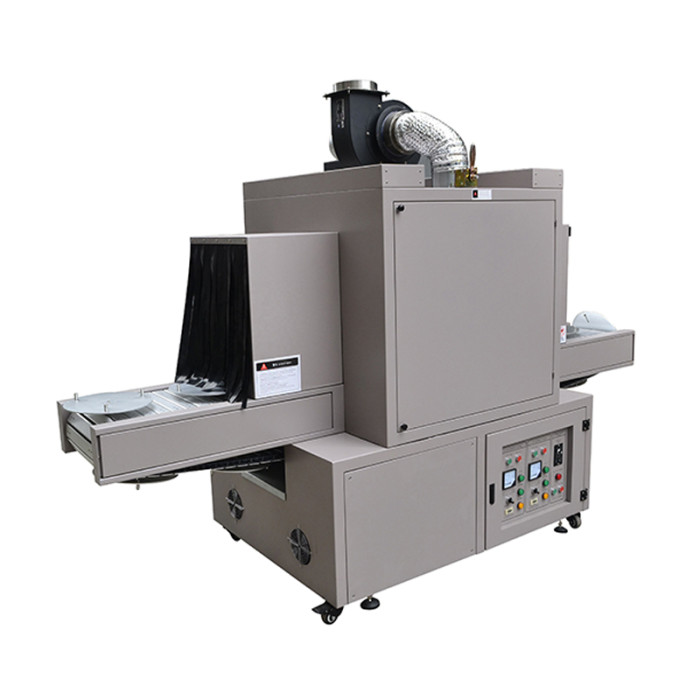

Appearance pictures
Application
Paint bucket
Oil drum
Plastic dustbin
