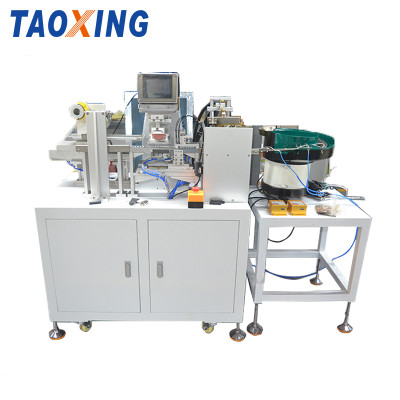

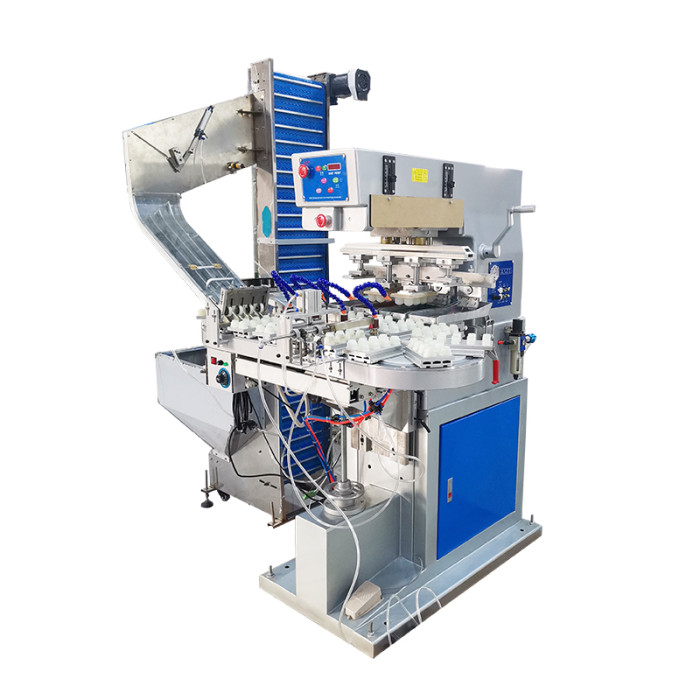

TAOXING High Speed Fully Auto 4 Color Pad Printing Machine for Bottle Caps
TAOXING High Speed Fully Auto 4 Color Pad Printing Machine for Bottle Caps
Automatic pad printing machine for plastic bottle caps. It is characterized by placing all those bottle caps, lids, etc. in high work capacity and perfect print quality. With fully automatic feeding, fire flame treatment, 1-4 color printing, air blower drying and automatic discharging system as a complete printing production line.
| Categories | Automatic Pad Printing Machine |
|---|---|
| Brand | TAOXING Screen Printing Machines Manufacturer |
| Model | TXZ4-200-100 |
| FOB port | Ningbo |
| Terms of Payment | Western Union, T/T |
| Update Time | Oct 16,2024 |
Detail Information
Application
Automatic pad printing machine for plastic bottle caps. It is characterized by placing all those bottle caps, lids, etc. in high work capacity and perfect print quality. With fully automatic feeding, fire flame treatment, 1-4 color printing, air blower drying and automatic discharging system as a complete printing production line.
Specification
Operation:Automatic
No. of Color: 4Colors
Plate size: 200*100mm
Max Printing Speed: 1000-1200pcs/hr
Power Voltage: 220V/50Hz
Air Pressure: 6 Bar
Machine Dimension: 1.3*1.3*1.6+1.6*0.7*2.0m
Machine Weight: 400kg
Feature
1.Auto 4-digit counter built-in,and stat. Printing quantity
2.Worktable, printing head and ink tray can be adjusted X.Y.Z direction
3.Sucking ink and the pressure of printing pad can be adjusted independently.
4.scrapper stroke can be adjusted
5.The speed of all the cylinders have an independent regulator intortum
6.Each adjustable location has scale logo
7.Unique machine body hold-up design,it is convenient to adjust machine and change steel plate
Detail pictures
Printing sample
