Innovative Technology-leading Precision Screen Printing Machine Manufacturer

The UV curing machine with convey， is specially for cuing the UV ink on cup,bottle and other round product.

Categories	UV Curing Machine
Brand	TAOXING Screen Printing Machines Manufacturer
Model	TX-UV200PY
Type	UV curing machine
Rated voltage / light power	AC 380V
Weight	200 KG
Max diameter	200mm
Max Height	280mm
Speed	1-10 m/min
UV lamp power	5.0KW
FOB port	Shanghai or Ningbo
Terms of Payment	T/T
Update Time	Oct 16,2024

Detail Information

Introduction UV Curing Drying Machine

The UV curing machine with convey， is specially for cuing the UV ink on cup,bottle and other round product.

1.Low MOQ: It can meet your low qty demand very well.

2.Good Service : We treat clients business as our own business.

3.Good Quality :We have strict QC quality control system .Good reputation in the market.

4.Fast & Cheap Delivery: We have big discount from shipping forwarder (Long Contract).

Specification

Main parameters

Max diameter: φ200mm

Max Height: 280mm

Speed: 1-10 m/min

UV lamp power: 5KW

Power: 380V three phase

Features and Performance

1) There are 1 sets of UV light source system,please utilize it according to the detailed requirement

2) The imported Teflon mesh belt conveyor, it is enjoying precise production, smooth running , and restful.

3) The speed of conveyor is adjustable，it can be adjusted any reasonable speed you need.

4)The operating current of UV lamp is showed outside so as to control the working status.

5) There is a heat-extraction system to keep a high-efficiency working environment.

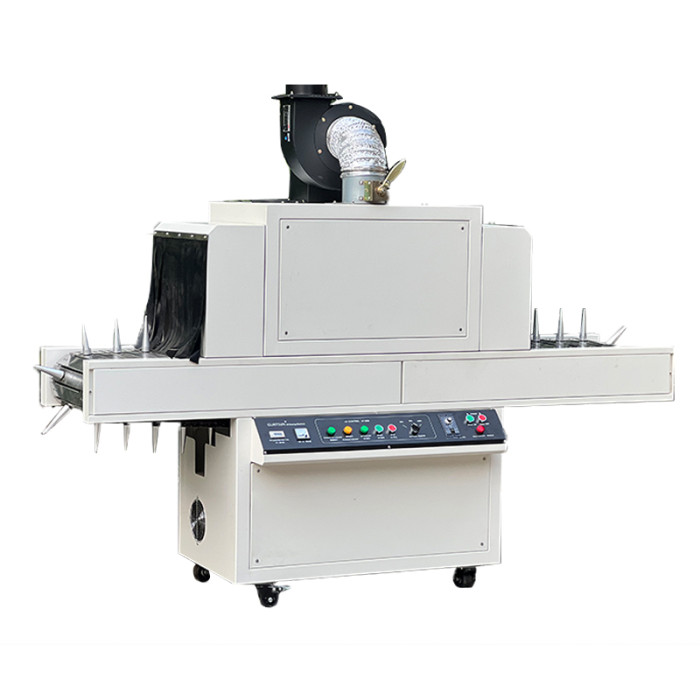

Appearance pictures

Application
