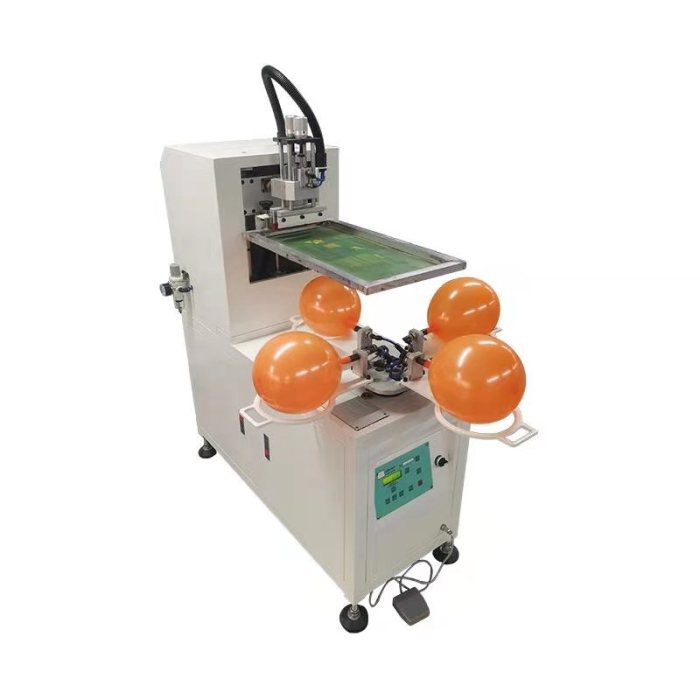

TAOXING Single Color 4 stations Balloon Screen Printer Machine TX-QQ150
TAOXING Single Color 4 stations Balloon Screen Printer Machine TX-QQ150
This screen Printing Machine is specially design for Printing Latex balloons. With single color single side printing at one time.
| Categories | Curved Screen Printing Machine |
|---|---|
| Brand | TAOXING Screen Printing Machines Manufacturer |
| Model | TX-QQ150 |
| Max printing area | 200*200mm |
| Printing speed | 1500-1800 pcs/hour |
| Air pressure | 0.6Mpa |
| Voltage | 220V/50Hz/ 0.5KW |
| Dimensions(L*W*H) | 1700*1700*1900mm |
| Weight | 134 KG |
| Place of Origin | Zhejiang, China |
| Automatic Grade | Semi-automatic |
| FOB port | Shanghai or Ningbo |
| Terms of Payment | T/T |
| Update Time | Oct 16,2024 |
Detail Information
Introduction
This screen Printing Machine is specially design for Printing Latex balloons. With single color single side printing at one time.
Main parameters
Model: TX-QQ150
Printing Size: 200*200mm
Voltage/Power: 220V/50HZ/ 0.5KW
Print speed: 1500-1800pcs/hour
Dimension: 1700*1700*1900mm
Weight: 134KG
Features
1.Microprocessor control each function with high automation and easy operation;
2.4-digit auto counter built in;
3.Cylindrical/conical printing function available;
4.Auto ink squeegee and flooding, worktable elevating to assure easy operation and consistent print quality;
5.Printing stroke and speed are adjustable to meet different requirements;
6.Fine adjustment available on squeegee left/right position to make substrate alignment easy and exact;
7.Fine adjusted available on worktable up/down and plane angle, and frame front/rear, left/right and up/down with high printing precision.
Printing samples
