Automatic Emulsion Coating machine Screen coater For Screen Printing
Automatic Emulsion Coating machine Screen coater For Screen Printing
Automatic Emulsion Coating machine is suitable for large-format glass , advertising and other screen printing screen of high-precision coating photographic emulsions.
| Categories | Coating Machine |
|---|---|
| Brand | TAOXING Screen Printing Machines Manufacturer |
| Model | TX-CT3350 |
| Power Voltage | 220V / 50HZ / 2.2KW |
| Weight | 1500 KG |
| Dimension | 4323 x 1225 x 5962 mm |
| Max frame size | 3300 X 5000mm |
| Machine specifications | W4323 x D1225x H5962 mm |
| Minimum frame size | 800 X 800mm |
| Maximum coating size | 3000 X 4700mm |
| Longest ink fountain length | 3000mm |
| Shortest ink fountain length | 600mm |
| Can be coated mesh frame thickness | 15-60mm |
| Coating accuracy | ±0.002 mm |
| Coating pressure | 2 - 6kg/cm2, can be adjusted |
| Coating speed | 5 - 150mm/sec |
| Operating system | HMI + PLC |
| Air pressure | 6kg/㎝² |
| FOB port | Ningbo |
| Terms of Payment | T/T |
| Update Time | Oct 16,2024 |
Detail Information
Introduction of Automatic Emulsion Coating machine
Application:
The Automatic Emulsion Coating Machine is primarily used in the screen printing industry to apply a uniform layer of emulsion onto screens. This machine ensures consistent, high-quality coatings that are crucial for producing detailed and accurate prints. Key applications include:
1. Textile Printing: Coating screens for printing designs on fabrics.
2. Graphic Printing: Preparing screens for posters, signage, and other graphic materials.
3. Electronics: Creating precise patterns on screens for printing circuit boards.
4. Industrial Applications: Coating screens used in printing labels, decals, and other industrial components.
Its automation enhances productivity, reduces labor costs, and improves coating precision compared to manual methods.
Features and Performance
(1) using imported motor (SANYUANG) can maintain a low vibration and average.
(2) the speed of coating, coating time can be set freely.
(3) according to the special pressure control device can adjust precision coating.
(4) single coated and double coating can be set freely.
(5) using the touch screen set coating number and speed.
(6) large-format high-precision coating effect can be achieved by ± 0.002 mm.
(7) walking guide with special steel materials to implement low vibration.
(8) choose PLC programmable controller and HMI human-machine interface as an operating control system.
(9) a variety of operating system default language, a variety of coating model, as well as detailed parameter Settings.
(10) key parts using imported brand.
(11) treatment for corrosion resistance of high precision aluminum photosensitive adhesive ink fountain.
(12) overall removable type design, convenient installation.
(13) the machine back against the wall mounting, effectively ensure the safe operation of the equipment.
Specification of Automatic Emulsion Coating machine

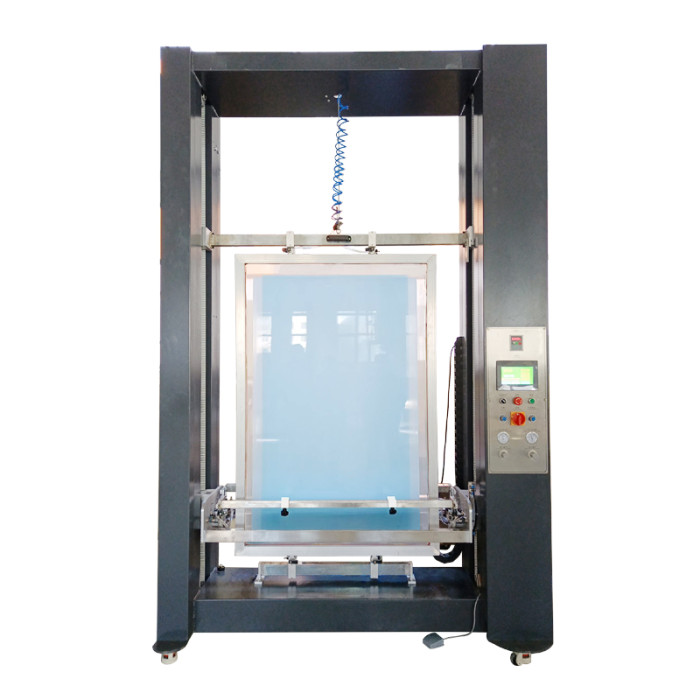

Machine image
Application of Automatic Emulsion Coating machine
