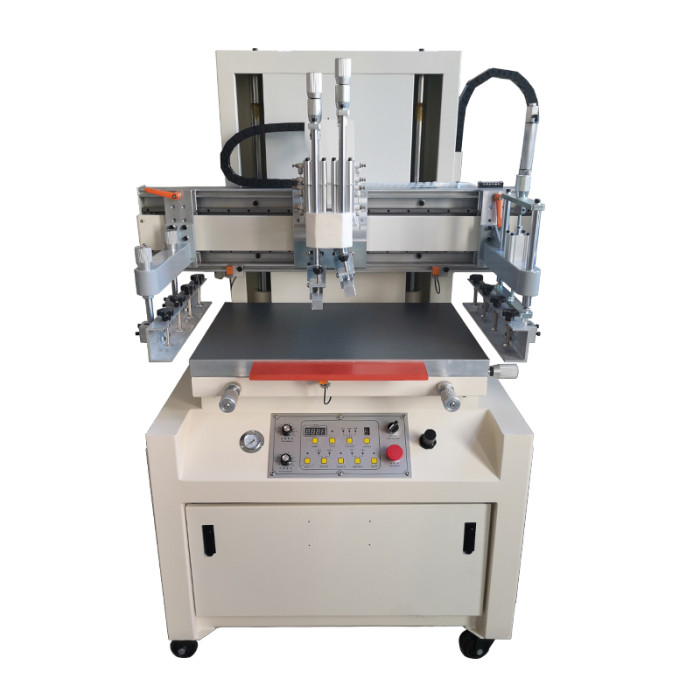

Semi-Automatic Flat Screen Printing Machine TX-4060ST For Paper And Glass

It is suitable for the plane printing of glass, optical disc, nameplate, adhesive, credit card, ceramic paper, wooden toy puzzle,PCB, SMT solder paste, film switch and other products in electronic industry, as well as for the plane printing of products with high overprinting accuracy based on gold and silver cardboard, metal sheet, PVC and so on.

Categories	Semi-Automatic Flat Screen Printing Machine
Brand	TAOXING Screen Printing Machines Manufacturer
Model	TX-4060ST
Printing color	1 color
Operating mode	semi-automatic
Printing speed	1000pcs/h
Maximum mesh frame size	400x1000mm
Printing size	400*600mm
Printing Thickness	25mm
Printing pressure	4.0~6.0 kfg/c㎡
Voltage/power	380V/50HZ /2.1KW
Dimension	1230x950x1580mm
Printing type	Automtic Screen Printing Machine
Weight	495 KG
FOB port	Ningbo
Terms of Payment	T/T
Download
Update Time	Jan 15,2025

Contact Now

Favorites

Detail Information

Introduction of Semi-automatic Flat Screen Printing Machine

Application:

The semi-automatic flat screen printing machine is suitable for the plane printing of glass, optical disc, nameplate, adhesive, credit card, ceramic paper, wooden toy puzzle,PCB, SMT solder paste, film switch and other products in electronic industry, as well as for the plane printing of products with high overprinting accuracy based on gold and silver cardboard, metal sheet, PVC and so on.

Main performance

① Vertical structure, frequency conversion electric drive is used for vertical lifting of screen plate, and frequency conversion electric drive is used for left and right action of printing head.

② Single chip microcomputer control circuit, printing and screen lifting using independent drive source.

③ Pneumatic control printing tool carrier lifting, photoelectric eye control stroke, independent adjustment.

④ Set up manual/semi-automatic/automatic three modes, printing indirect time digital control.

⑤Independently designed head lifting device, scraper/return knife, screen loading and unloading and screen cleaning is convenient.

⑥ Double guide post left and right net clip arm, and installation of plate distance adjustment device, easy to adjust.

⑦With a thimble cylinder, with the manipulator to take material.

Specification

Model			TX-4060ST
Table Size			400x600mm
Substrate Thickness			0-25 mm
Max Printing Area			400×600mm
Printing speed			1000 pcs/h
Maximum screen frame size			400x1000mm
Stacking Height			300mm
Worktable Displacement			±5mm
Power Consumption			380V/50HZ /2.1KW
Printing pressure			4.0~6.0 kfg/c㎡
Machine Dimension			1230x950x1580mm
Machine Weight			495KG
