Semi-Automatic Servo Lifting Platform Flat Screen Printing Machine Manufacturer
Semi-Automatic Servo Lifting Platform Flat Screen Printing Machine Manufacturer
This servo lifting platform flat screen printing machine is suitable for printing various flat sheet materials and flat printing pieces such as leather, canvas, non-woven fabric, Oxford cloth, mobile phone panels, metal sheets, etc.
| Categories | Semi-Automatic Flat Screen Printing Machine |
|---|---|
| Brand | TAOXING Screen Printing Machines Manufacturer |
| Model | TX-5080SJ |
| Printing color | 1 color |
| Operating mode | semi-automatic |
| Printing speed | 1000pcs/h |
| Maximum mesh frame size | 700*1100mm |
| Printing size | 500*800mm |
| Item Number | TX-5080SJ |
| FOB port | Ningbo |
| Terms of Payment | T/T |
| Update Time | Oct 16,2024 |
Detail Information
Application
This servo lift flat screen printer is suitable for printing various flat sheets and flat plate prints such as leather, canvas, non-woven fabrics, Oxford cloth, mobile phone panels, metal plates, etc.
Main performance
1. The vertical lifting of the platform adopts servo motor and screw drive to rise/fall; the screen beam is driven by cylinder to lift.
2. The pneumatic screen clamp frame is equipped with manual locking, which is easy to install and firmly fixed. The clamp frame is equipped with height fine-tuning, which can adjust the clamping of screen frames of different thicknesses.
3. The platform adopts servo motor + star reducer + precision screw to automatically lift and lower. It prints one sheet and removes one sheet. It has the function of slowly lifting the plate to avoid sticking after printing.
4. The printing stroke adopts servo motor and precision linear guide rail, the printing speed is stable and can be variable. The printing range is set by human and machine, which is convenient to operate.
5. The printing head can be raised and lowered manually, which is convenient for replacing scrapers, ink-covering knives, screen frames, and scrubbing screens.
6. PLC, human-machine, and motor control can select a variety of printing modes to adapt to diversified printing.
7. The operation of the additional button panel makes the manual adjustment process safe and convenient to prevent errors in human-machine operation.
Main parameters
|
Model
|
TX-4060SJ
|
Printing table size: | 500*700mm |
|
Maximum printing size:
|
600*600mm
|
|
Screen fine-tuning range:
|
±10mm
|
|
Table lifting height:
|
MAX 240mm
|
|
Maximum screen
frame size: |
600*900mm
|
Screen lifting height: | 200mm |
Printing speed: | 600-900 pieces/hour |
Printing head speed: | 0-800mm/s |
Screen frame thickness: | 25-55mm |
Print thickness: | 0-25mm |
Power supply | AC220V 50/60HZ |
Inlet pressure: | 5-6kg/㎝² |
Printing head oblique printing angle: | ±9° |
Air consumption: | 2.6 liters/turnover |
Machine size: | 1450*950*1700mm |
Machine weight: | about 400kg |

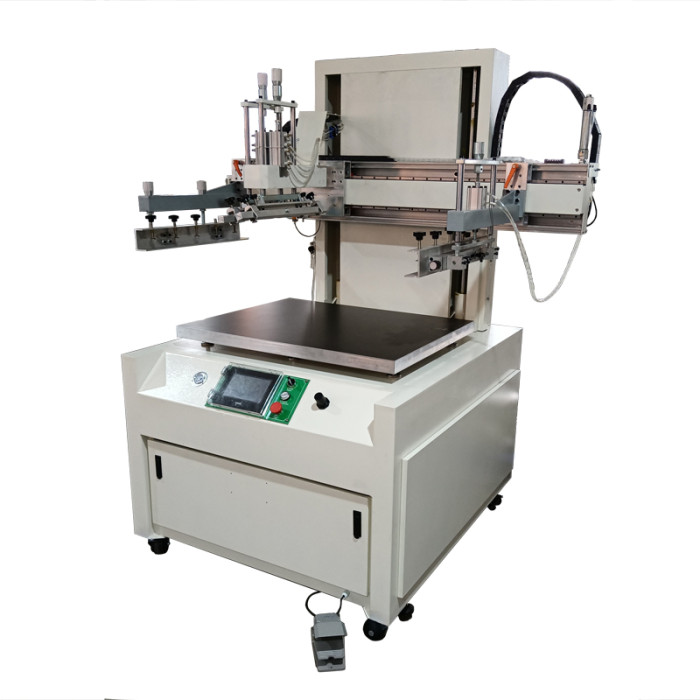

Machine photos
Details Picture
